The Compaq PC companion Series

Publication Date: November 1996
Document Number: 013A/1196

Models

Model C120
2MB RAM
4MB ROM
480X240 Touch Sensitive Display
2AA Batteries
Serial Cable
266500-001

Model C120+
2MB RAM
4MB ROM
480X240 Touch Sensitive Display
2AA Batteries
Serial Cable
14.4 LP PC Card Modem
AC Adapter
Quick Connect
266502-001

Model C140
4MB RAM
4MB ROM
480X240 Touch Sensitive Display
2AA Batteries
Serial Cable
266550-001

Introducing the easiest way to access and exchange information with a Windows-based PC - the new Compaq PC companion. With a new, sleek form factor, the PC companion provides seamless desktop connectivity, proving to be an irreplaceable business tool for the road or office. Standard with the Microsoft Windows CE® operating system, the PC companion also includes Information Manager, pocket versions of Word and Excel, allowing for basic application use at anytime.

What's New

The Platform: The Compaq PC companion is the first of a new family of Compaq handheld products. Weighing less than a pound and small enough to fit in your pocket, the PC companion is the smallest computing device available from Compaq today. Compaq is taking mobile convenience to the next level by allowing customers distributed information access when and where they need it.
The Operating System: The Compaq PC companion comes standard with Microsoft Windows CE®1. With a Windows 951 look and feel, Windows CE® is the 32-bit environment that provides the ease of use customers desire. Also included are pocket versions of Microsoft Information Manager, Word, Excel, Internet Explorer, and Microsoft InBox.

Key Features and Benefits

Minimum 2MB of RAM (upgradeable) provides plenty of room to run installed applications and stores volumes of data
4MB of ROM provides ample storage capacity for the Windows CE OS and included applications
480x240 backlit, touch sensitive display takes ease of use to the next level
Type II PC Card support for adding modem communications and additional data storage with flash memory cards
6.8x 3.6x 1" form factor that weighs only 13.4 ounces and allows for convenient, easy traveling
Preinstalled pocket versions of Microsoft Information Manager, Word, Excel and the Internet Explorer provide for time management, data entry and access, Web browsing2 and email exchange all in the palm of your hand
Desktop versions of the Handheld PC Explorer and Information Manager for easy data exchange and schedule synchronization.
Standard AA batteries give plenty of life lasting up to 20 hours without replacement
AC power support allows for extending battery life by using standard AC power instead of batteries*
Docking cradle support means quicker, easier local connectivity with a primary PC
Infrared port allows for wireless information exchange with another Compaq PC companion for quick, easy file sharing
Lithium back-up battery prevents data loss caused from lack of primary battery or AC power
1 year Worldwide Limited Warranty backed with Compaq's industry leading service and support offerings.

Other Available Options

Memory 2-MB Memory Expansion 266506-001 10MB Flash RAM 266517-001	Communications 144 LP PC Card Modem 266509-001
Convenience Options
Power Pack 266514-001 AC Adapter Quick Connect NiMH Battery Battery Charger	Combo Pack 266520-001 AC Adapter Quick Connect
Other
3-Pack Stylus 266515-001	Carrying Cases Slipcase 266573-001 Carrying Case 266572-001

User Profile

Mobile PC owners who need a tool to access and synchronize both business and personal data instantly.
Traditional corporate customers who desire to travel light and need the ability of staying connected with the office.
Individuals in either small or large companies who want a tool for information access and exchange, as well as better time management. Willing to use personal funds to purchase product.
Sophisticated consumers with busy schedules and active lives wanting to more efficiently manage their time and information.

For More Information

Call 1-800-231-9977, select the PaqFax option and request document 4039.

Overview

Compaq PC companion

Benefits At a Glance

Small, lightweight form factor convenient enough to carry everywhere
Microsoft® Windows® CE operating system for instant familiarity
Built-in applications include: pocket versions of Microsoft Word, Excel, plus information management software compatible with Microsoft Schedule+
Easy PC connectivity and file synchronization with standard software and hardware
Docking capabilities via standard Auto-Sync cable and optional Convenience Cradle or Quick Connect
2 MB/4 MB standard RAM, expandable to 4 MB/6 MB depending on model
480 x 240 backlit, touch sensitive display with 4 shades of gray
PC Card Type II support of selected PC Cad options
Keyboard and stylus for data input and navigation
Infrared port allows quick data exchange with another PC companion
Up to 20 hours battery life on two AA Alkaline batteries, lithium back-up battery prevents data loss during main battery replacement
Optional NiMH battery supports continuous use with recharge capabilities
Assortment of options for added convenience, performance and ease of use
High performance RISC processor for fast switching between applications
Protected by CompaqCare, including a limited one-year, mail-in warranty*

* Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.

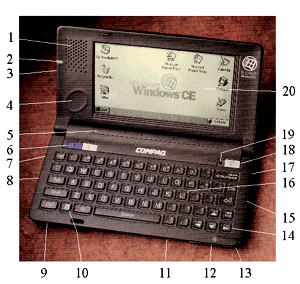

Integrated Speaker
External notification LED
Contrast Dial
Contoured thumb grip
2 AA Batteries
On/Off Buttons
IrDA compatible IR port (on side)
RS-232C/Power Connector (on side)
Alarm/LED notification shut-off
Windows start key

PC Card Eject lock (on front edge)
PC Card eject switch lever (on front edge)
Stylus pen for OS navigation and input
Inverted "T" Cursor Keys
One Type II PCMCIA PC Card Slot (on side)
QWERTY keyboard
Data communication jack
Backlight button
Reset bButton
LCD Display (touch sensitive, 4 shades of gray)

Lithium back-up battery (on bottom)
2 MB upgrade slot (on bottom)

Quick Specs

November 1996

Compaq PC companion

Models

C120
266500-001

C120 +
266502-001

C140
266550-001

Standard Features

Size and Weight (HxWxD)

1 x 6.8 x 3.6 inches
13.4 ounces

Processor

Hitachi SH3 RISC

Display/Graphics

480 x 240 graphics with 4 shades of gray
Touch sensitive display

RAM

2 or 4 MB of RAM standard, expandable with 2 MB Module

ROM

4 MB

Keyboard

Full-function QWERTY style keyboard

Pointing Device

Stylus

Interfaces

Serial, IrDA IR, Data Communications port (for future support of digital cameras and label printers)

PC Card

1 Type II slot (for selected PC Card options)

Security Features

Power-on Password, auto suspend time-out

Battery Life

Up to 20 hours on standard AA Alkaline (included)
Up to 14 hours on optional NiMH Battery Pack

Power Management

Instant-On; User-Initiated Suspend; power conservation: 1-5 minute presets for auto suspend

Preinstalled Software

Microsoft Windows CE, Information Manager for Windows CE, Microsoft Pocket Word, Microsoft Pocket Excel, Pocket Internet Explorer, Inbox (e-mail client), Remote Networking, Calculator, Terminal, World Time

Docking

Standard Auto-Sync cable
Optional Quick Connect
Optional Convenience Cradle

Service and Support

CompaqCare provides a wide range of service offerings including a limited, one-year1 mail-in warranty; toll-free 7 x 24 hardware technical phone support for Compaq products.

Options
Memory
2-MB Memory Expansion Module	266506-001
10-MB Flash RAM	266517-001
Communications
14.4 LP PC Card Modem	266507-001
Power
Combo Pack	266520-001
Includes: Quick Connect & AC Adapter
Power Pack	266514-001
Includes: Quick Connect & AC Adapter, NiMH Battery Pack & Battery Charger
Convenience
Convenience CradlePack	266513-001
Stylus 3-Pack	266515-001
Carrying Cases*
Slipcase	266573-001
Carrying Case	266572-001

1Certain restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.
*Carry cases available via Targus/Fabrique

Microsoft, Windows, Windows NT, and the Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Other product names mentioned herein may be trademarks and/or registered trademarks of their respective companies.

Features

Compaq PC companion


	Compaq PC companion Model C120	Compaq PC companion Model C120+	Compaq PC companion Model C140
System Unit
RAM
Standard	2 MB	2 MB	4 MB
Maximum	4 MB	4 MB	6 MB
Advanced Power Management	Auto suspend, user initiated suspend	Auto suspend, user initiated suspend	Auto suspend, user initiated suspend
ROM	4 MB	4 MB	4 MB
Display
Type	2-bit LCD	2-bit LCD	2-bit LCD
Resolution	480 x 240	480 x 240	480 x 240
Touch Sensitive	Yes	Yes	Yes
Shades of gray	4	4	4
Interfaces/Communications
Serial (cable included)	1	1	1
Infrared communication port	1	1	1
PC CARD	One TYPE II PC CARD slot	One TYPE II PC CARD slot	One TYPE II PC CARD slot
14.4 kbps low power PC Card modem	Optional	Standard	Optional
Pointing Device
Pen	1	1	1
Power
AA Batteries	2	2	2
Battery Pack NiMH	Optional	Optional	Optional
AC Adapter	Optional	Standard	Optional
Docking
Auto-Sync cable	Standard	Standard	Standard
Quick Connect	Optional	Standard	Optional
Convenience Cradle	Optional	Optional	Optional
Supported Operating Systems and Software
Preinstalled Software	Microsoft Windows CE, Calendar, Contacts, Tasks, Microsoft Pocket Word, Microsoft Pocket Excel, Pocket Internet Explorer, Inbox (e-mail client), Remote Networking, Calculator, Terminal, World Time	Microsoft Windows CE, Calendar, Contacts, Tasks, Microsoft Pocket Word, Microsoft Pocket Excel, Pocket Internet Explorer, Inbox (e-mail client), Remote Networking, Calculator, Terminal, World Time	Microsoft Windows CE, Calendar, Contacts, Tasks, Microsoft Pocket Word, Microsoft Pocket Excel, Pocket Internet Explorer, Inbox (e-mail client), Remote Networking, Calculator, Terminal, World Time
Desktop companion applications	Microsoft Schedule+, Handheld PC Explorer	Microsoft Schedule+, Handheld PC Explorer	Microsoft Schedule+, Handheld PC Explorer
Physical Specifications
Dimensions (HxWxD)	1 x 6.8 x 3.6 inches	1 x 6.8 x 3.6 inches	1 x 6.8 x 3.6 inches
Weight	13.4 ounces	13.4 ounces	13.4 ounces

Memory

November 1996

Compaq PC companion

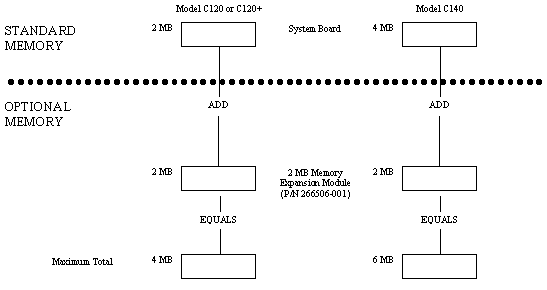

Following is the memory option available form Compaq:

· 2 MB Memory Expansion Module

266506-001

Compaq, Armada, registered United States Patent and Trademark Office. PaqFax is a service mark of Compaq Computer Corporation. Other product names mentioned herein may be trademarks and/or registered trademarks of their respective companies.

Tech Specs

November 1996

Compaq PC companion

System Unit
Dimensions (HxWxD)	1 x 6.8 x 3.6 in / 2.6 x 17.3 x 9.2 cm
Weight (with battery)	13.4 ounces/0.38 Kg
Temperature
Operating	32 to 104° F / 0 to 40° C
LCD Monochrome Display
Shades of Gray	4
Pixel Resolution
Pitch	0.24 mm
Format	480 x 240
Configuration	Monochrome
Backlight	Electro luminescent
RAM
Model C120 and C120+	2 Mbytes, expandable to 4 Mbytes
Model C140	4 Mbytes, expandable to 6 Mbytes
ROM
On all Models	4 Mbytes
Two AA Alkaline Batteries
Battery Life1	Up to 20 Hours
Nickel Metal Hydride (NiMH) Battery Pack (optional)
Dimensions (HxWxD)	0.7 x 4.4 x 0.9 in / 1.8 x 11.2 x 2.3 cm
Energy
Nominal Open Circuit Volt	2.4 V
Rated Capacity	1150 mAH
AC Adapter
Dimensions (HxWxD)	1.0 x 2.1 x 1.8 in / 2.5 x 5.3 x 4.6 cm
Cord Length (approximate)	6.4 ft / 2 m
Power Supply Ratings
Voltage Range	100 - 120 V
Input Current	0.22 A
Input Frequency	50 - 60 Hz
Output Voltage	5 Volts
Output Current	1.6 A

1 Battery life is based on an estimated typical use pattern of an average user and will vary based on the configuration of the computer and the usage pattern of the individual user. "Using a PC Card can drastically reduce the battery life of the PC companion. Use only supported modem and memory PC Cards. For a list of PC Cards supported by this product, click here [ http://www.compaq.com/support/techpubs/pcmcia/pccardlist.html ].
