From:  Jean-Sebastien stoezel
Subject:  [Paparazzi-devel] Linux Port
Date:  Mon, 2 Jan 2006 21:18:52 -0600

Hello there,

Have you ever though of porting your flight software to linux?

What kind fo board would you use? A low cost arm7 based?
Wwhat kind of embedded linux would you use?

Thank you in advance,
Jean-Sebastien

From:  antoine . drouin
Subject:  Re: [Paparazzi-devel] Linux Port
Date:  Tue, 03 Jan 2006 15:16:04 +0100
User-agent:  Internet Messaging Program (IMP) 3.2.5

Hello Jean Sebastien

Selon Jean-Sebastien stoezel :

> Hello there,
>
> Have you ever though of porting your flight software to linux?

The groundstation runs on a Linux laptop - The airborne code has strong real
time and high availability constraints that make the use of an OS no so
desirable.

Nevertheless we are aware that payload applications might benefit an OS -
This is why our next generation board is designed as a gumstix
(ARM9)daughterboard, where the autopilot runs in a pair of ARM7
microcontrollers and can be controlled by a gumstix/linux application.

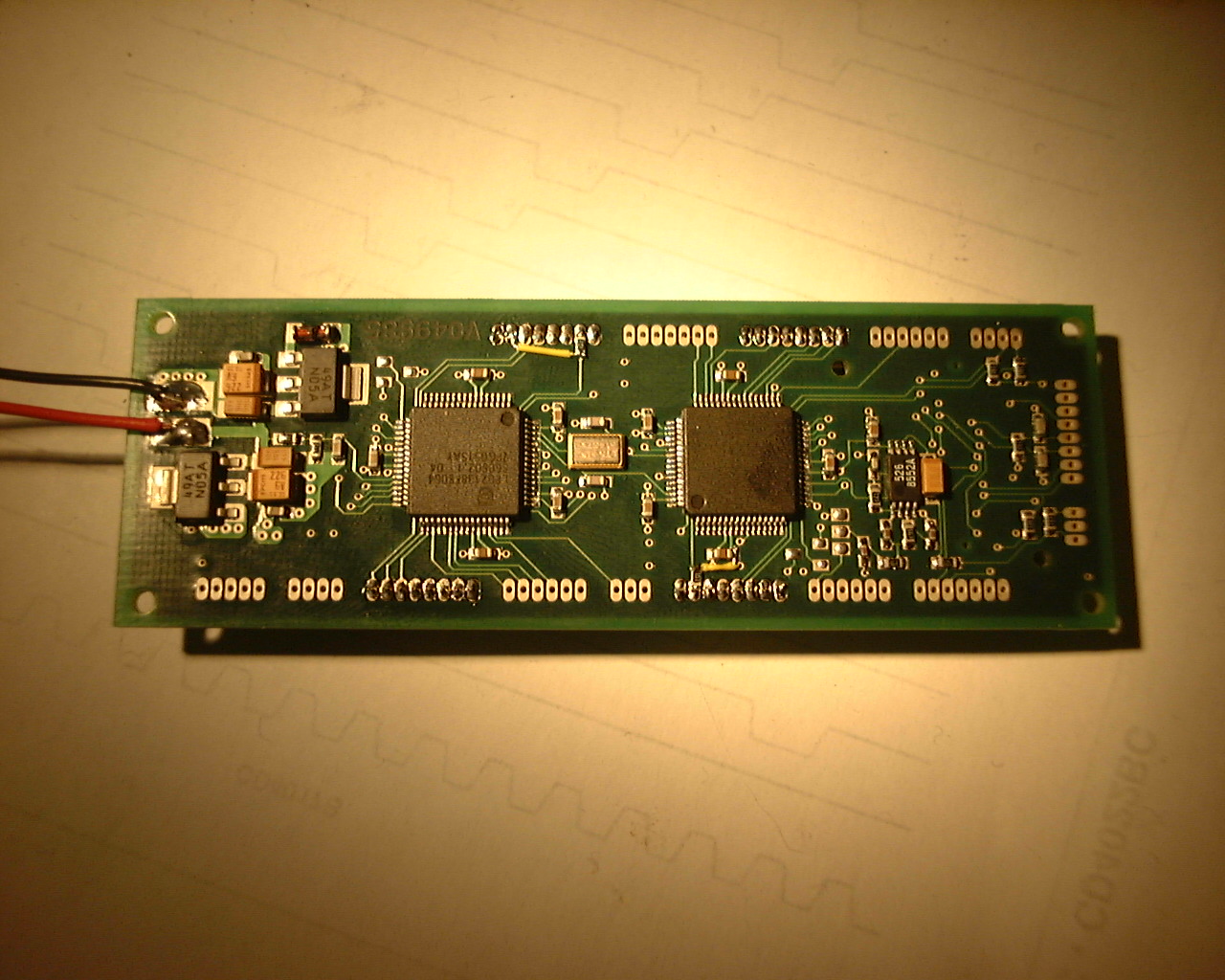

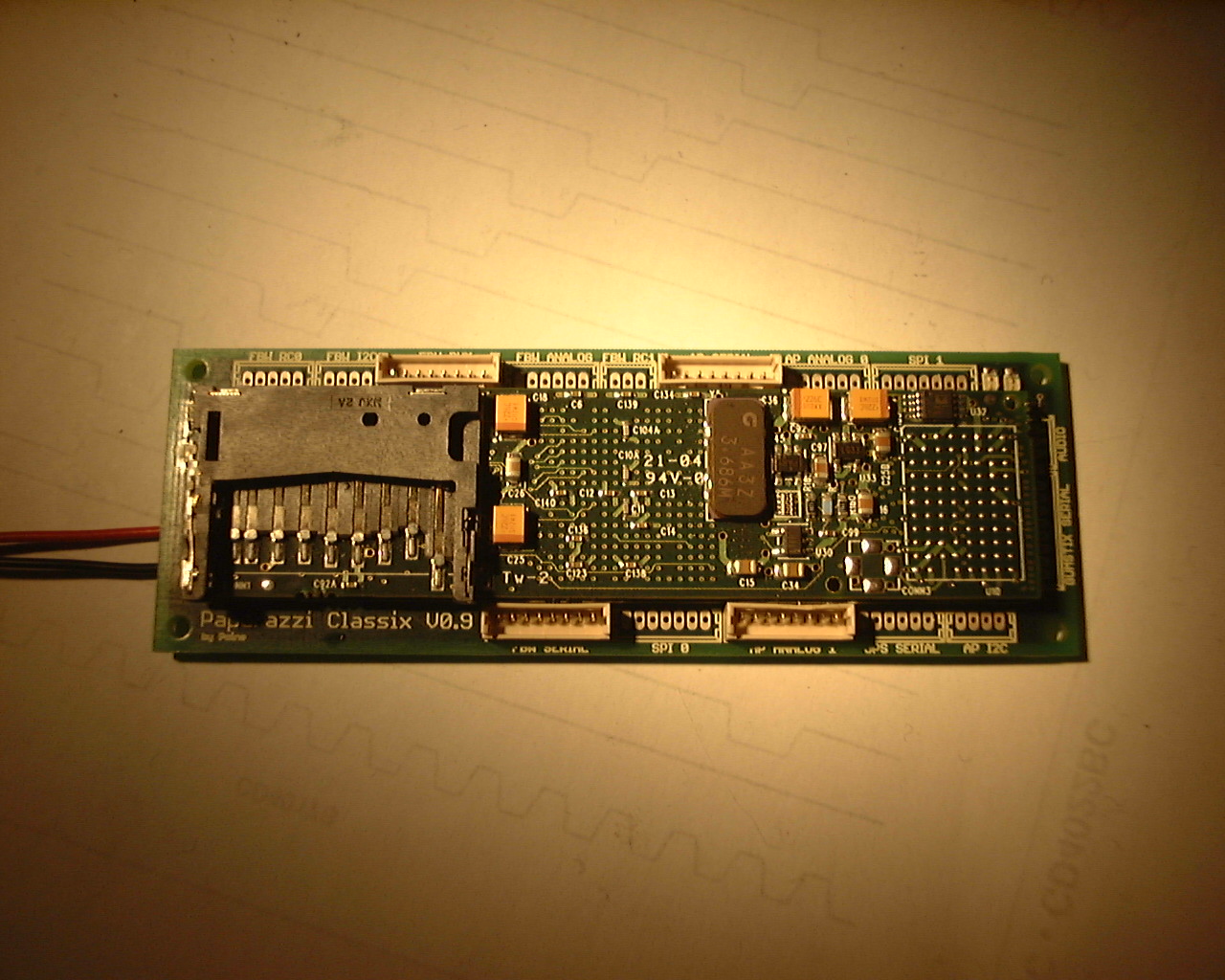

Here is a picture of the first prototype

http://antoine.drouin.free.fr/lpc_board/arm_family/dsc00021.jpg
http://antoine.drouin.free.fr/lpc_board/arm_family/dsc00020.jpg

In the meantime and in order to offer commercial hardware support, we are
porting the autopilot to the robostix board ( single avr mega128 gumstix
daughter board )

http://gumstix.com/oscommerce-2.2ms2/catalog/product_info.php?cPath=31&products_id=142

And as two boards were not fun enough, we have also developed a smallish
'all-in-one' ARM7 board, nicknamed Tiny

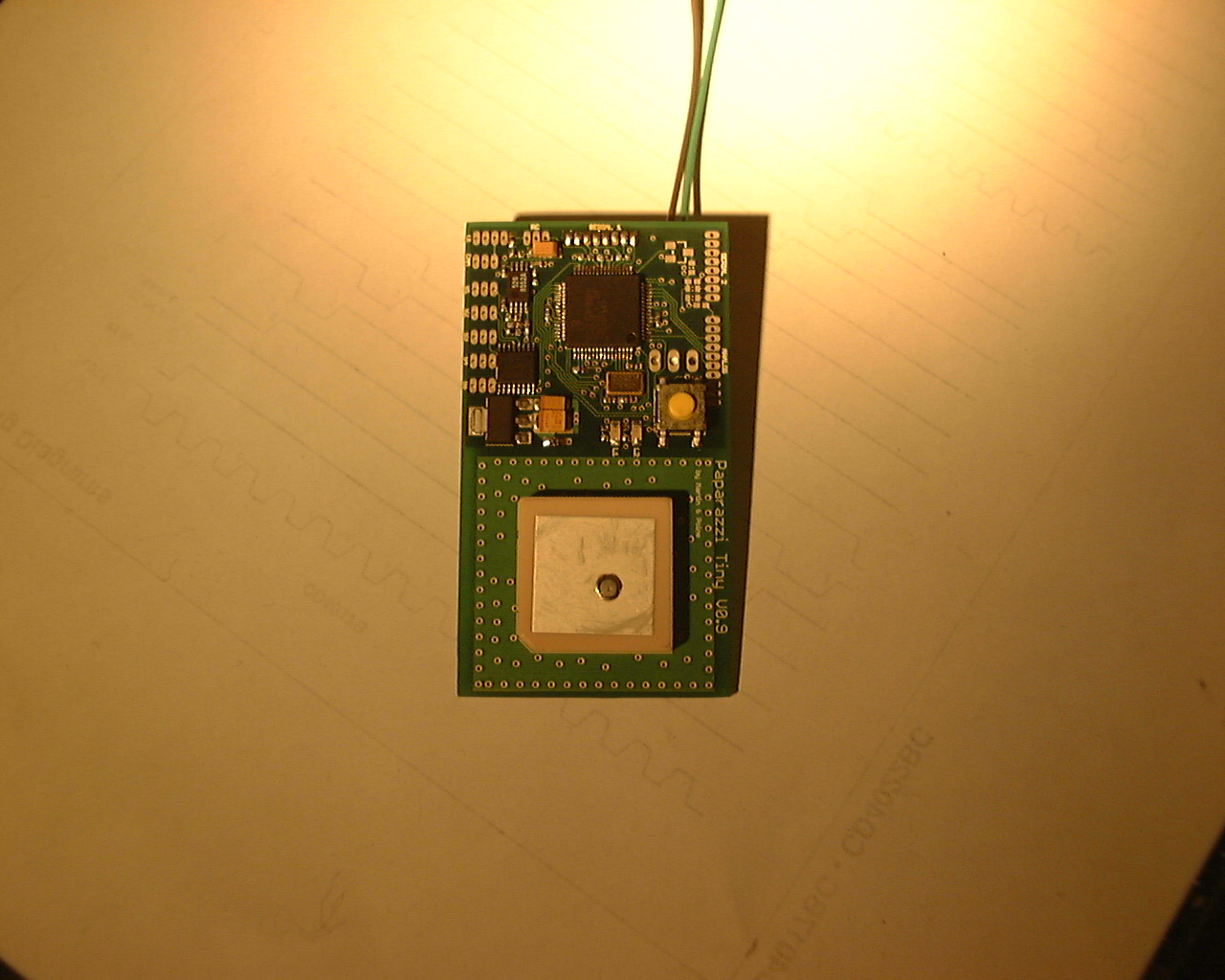

Here is a picture of the beast

http://antoine.drouin.free.fr/lpc_board/arm_family/dsc00001.jpg

Best regards

Antoine
