Lisa/M next generation entry level Paparazzi Autopilot

December 14, 2010

As promised, we want to talk about projects we are currently working on. One of them is Lisa/M [ http://wiki.paparazziuav.org/wiki/Lisa#Lisa.2FM ].

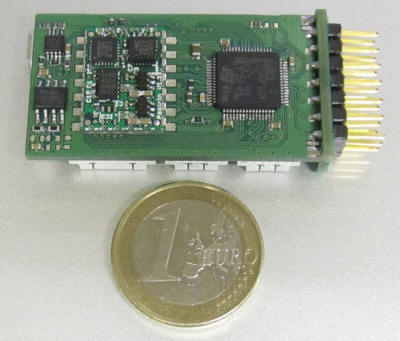

Lisa/M will be the medium sized Autopilot based on the STM32 Cortex-M3 [ http://www.st.com/internet/mcu/class/1734.jsp ] microcontroller. It is part of the Lisa [ http://wiki.paparazziuav.org/wiki/Lisa ] series of Autopilots. It is very small (50mm x 25mm), about the size of an RC receiver. We want it to be as affordable as possible so that more people can join the autonomous aircraft revolution. The final cost still needs to be determined, as we are not done with the development yet.

Due to its large capabilities and small size, it can be used as a full Autopilot for fixed wing airplanes, multicopters and helicopters, as well as an IO extender/repeater (in which case the IMU can be left out, cutting the cost significantly).

One other interesting feature is that it can host the SMD mounted Aspirin IMU without adding size. The Aspirin IMU is the next generation small, flat, low part count and cheap IMU that will get an article by itself.

Lisa/M features a multitude of interfaces:

CAN serial
USB
SPI serial
I2C serial
2 RS232 3V3 and 5V TTL level (UART)
6 PWM servo outputs
7 analog inputs
3 general purpose digital in-/out-puts

Lisa/M with mounted IMU has the following sensors on board:

3 Axis Gyroscope
3 Axis Accelerometer
3 Axis Magnetometer
Pressure sensor

The pressure sensor is mounted directly on Lisa/M as this sensor is not provided by Aspirin. Without a GPS unit you have all necessary sensors for full attitude and altitude stabilization in an extremely small package (if you know of a smaller one, let us know!). With an external GPS unit, it is a full fledged Autopilot.

Now you may ask when will it be available for prime time. We can’t give you a definite answer. What we definitely can say is that it will be as soon as it is ready.

But now seriously. We are currently working on the second revision of our prototypes. Based on our experience it takes 3 to 4 revisions of a hardware design to get it right. That means in a few months if everything goes well.

Don’t lose faith though. The first design was already good enough to be able to fly an airplane. That means that there are no major mistakes in the design.

We will of course keep you up to date on this project progress in future articles.

Cheers … your Paparazzi team.

5:53 am

Matjaz

December 14, 2010

Is it possible to get schematics for Lisa/m, and where can one get more information about aspirine IMU ?
Cheers, Matjaz

9:29 pm

esden

December 15, 2010

@Matjaz

No Lisa/M schematics are not released yet. They will be released as soon as the hardware is stable and available. The same way it was the case with Lisa/L. You will be able to find them in the paparazzi wiki and in the hardware repository. As it is the case for Lisa/L here: http://paparazzi.enac.fr/wiki/Dev/LisaL/Schematics/V1.1

There will be an article about Aspirin soon. … But to calm down your curiosity, Aspirin is an SMD carrier board with power supply and EEPROM for an IMU-3000 3 Axis gyro, HMC5843 magnetometer and ADXL345 accelerometer.

And to calm down my curiosity, why are you asking?

Cheers Esden

11:10 am

Matjaz

December 24th, 2010

@esden
I am designing my own UAV system with Atmel microcontrollers , and I’m currently evaluating options for pitch/roll detection. For 1st version of autopilot I will probably use thermopile sensors, but later versions will use some form of inertia measurment circuits.
Cheers and happy xmas
